# Pan & Zoom mode

<figure><img src="/files/xiy2R6uI6asgmvwcjAZD" alt=""><figcaption></figcaption></figure>

Navigate and preview your canvas freely — useful when working on large layouts or detailed sections

## What is Pan & Zoom mode&#x20;

<table data-card-size="large" data-view="cards"><thead><tr><th></th><th></th><th></th></tr></thead><tbody><tr><td><i class="fa-hand">:hand:</i></td><td><strong>Pan</strong></td><td>Drag across the canvas to move around your page without scrolling. Switch to the hand tool by clicking the hand icon in the zoom toolbar, or hold <kbd>Space</kbd> temporarily.</td></tr><tr><td><i class="fa-magnifying-glass-plus">:magnifying-glass-plus:</i></td><td><strong>Zoom</strong></td><td>Zoom in to fine-tune details or zoom out to see the full layout. Canvas loads at 100% by default when you open the editor.</td></tr></tbody></table>

## Enable Pan & Zoom mode ⚙

Two ways to turn it on.

{% stepper %}
{% step %}

#### Top bar toggle&#xD;

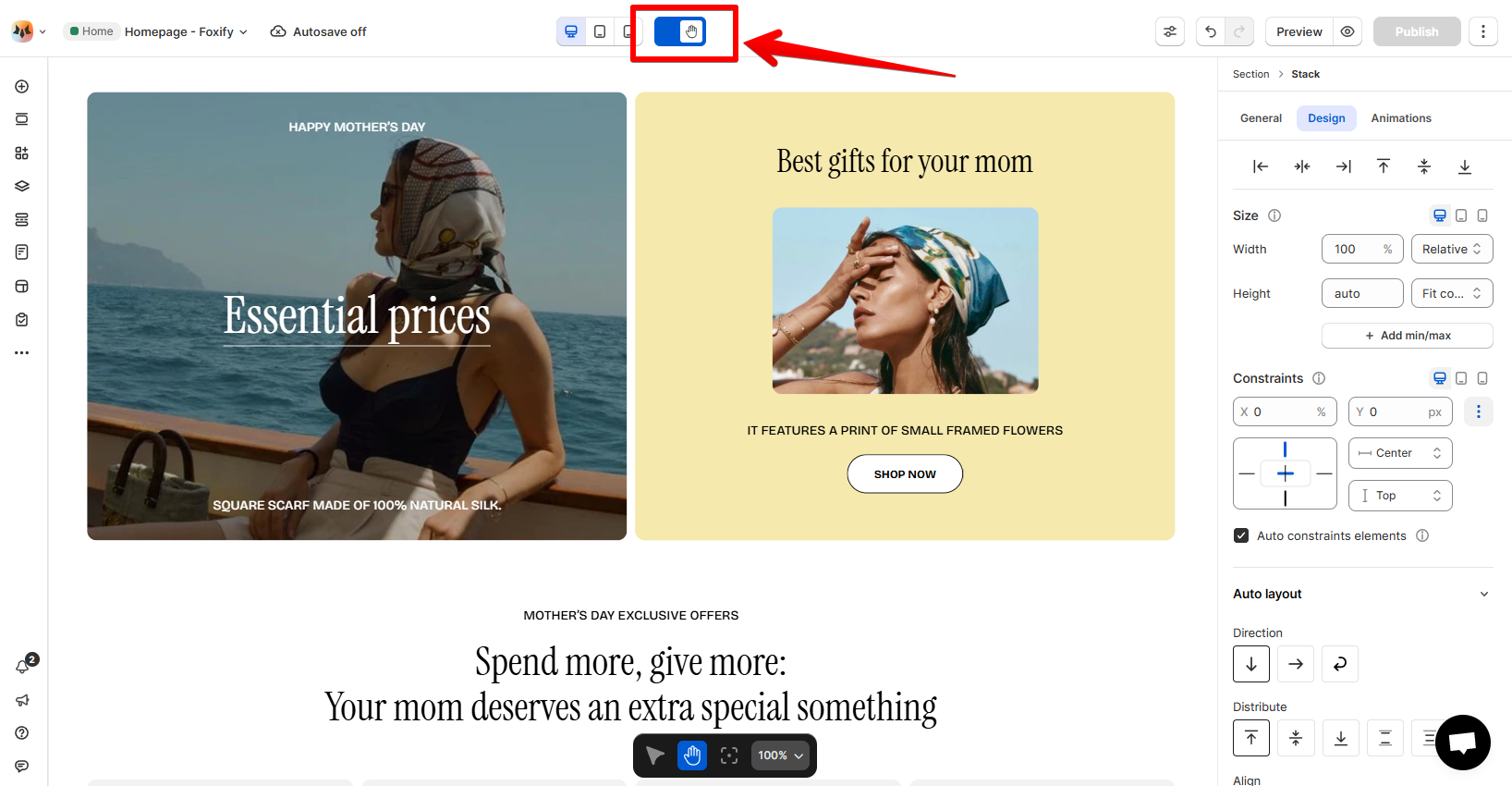

In the editor top bar, click the Pan & Zoom toggle to enable it directly.

<figure><img src="/files/ypMH5LY0zRcBoa1fujiu" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

#### Editor preference

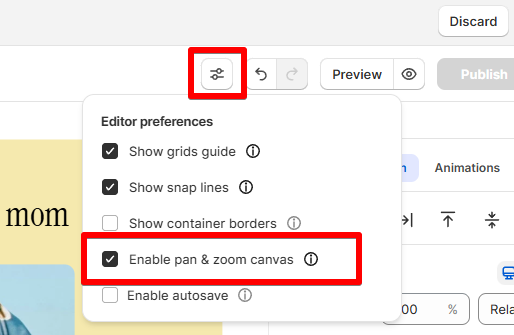

Click the **Editor preferences** icon and select **Enable pan & zoom mode**.

<figure><img src="/files/FbxyFXIDRbSmWOm9BtvR" alt=""><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

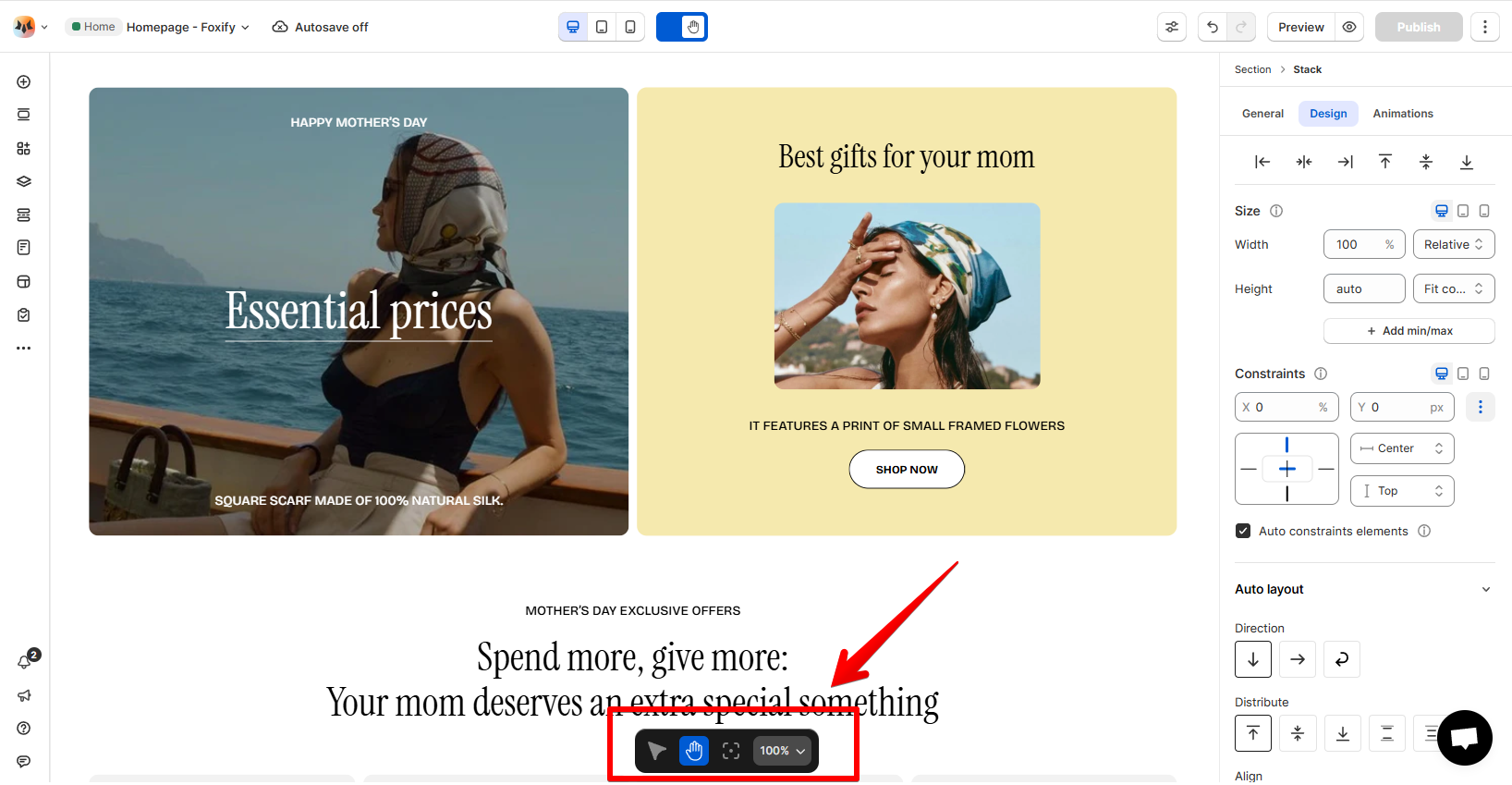

Once enabled, the **Zoom toolbar** appears at the bottom center of the canvas.

<figure><img src="/files/ji6zGahTDTJjDYLhbSHg" alt=""><figcaption></figcaption></figure>

## Keyboard shortcuts

<table><thead><tr><th width="180">Action</th><th>Shortcut</th></tr></thead><tbody><tr><td>Zoom in</td><td><kbd>Ctrl</kbd> + scroll up  /  <kbd>Cmd</kbd> + scroll up</td></tr><tr><td>Zoom out</td><td><kbd>Ctrl</kbd> + scroll down  /  <kbd>Cmd</kbd> + scroll down</td></tr><tr><td>Pan (temporary)</td><td>Hold <kbd>Space</kbd> to switch to hand tool</td></tr><tr><td>Pan (scroll)</td><td>Scroll to move vertically. Click and drag in hand mode to move freely.</td></tr></tbody></table>

## Zoom menu options

<table data-header-hidden><thead><tr><th width="180">Action</th><th>Shortcut</th></tr></thead><tbody><tr><td>Zoom to fit</td><td>Scales the canvas to show your entire design in one frame. Use this before publishing to review the full layout at a glance.</td></tr><tr><td>Zoom to 100%</td><td>Returns the canvas to actual size. Use this when you need to see exactly how elements will appear on screen.</td></tr><tr><td>Snap to center top</td><td>Instantly scrolls to the top of your design while keeping your current zoom level — useful when you've scrolled far down a long page.</td></tr></tbody></table>

{% hint style="info" %}
**Tips:**

✅ Keep your browser zoom at 100% for full access to editing tools and best performance.

✅ Use Zoom to fit before publishing to quickly review your full design layout.
{% endhint %}
